Molded Connector Samples
Multiple plastic housings with locking, guiding, and assembly features.
Tooling Support
Mold Trials & Insert Molding Tooling Support
Trial molding, insert and overmolding tooling review, sample verification, and engineering support for plastic component tooling after mold completion.
SupportMold trials, sample checks, tooling adjustment
ProcessesInsert molding tools, overmolding tools, trial review
ApplicationsConnectors, medical plastics, industrial components
Tooling Trial Support
From completed tooling to verified samples and engineering feedback
This category shows sample parts and connector-related tooling support used to evaluate mold performance. The role is trial, verification, and engineering feedback around the mold before tooling release.
Trial review can focus on appearance, critical dimensions, terminal position, locking features, assembly fit, repeatability, and required tooling adjustments. Automotive connectors are a key application, with medical and industrial plastic component tooling reviewed according to project requirements.
Trial Sample Gallery
Connector samples and insert molding tooling references

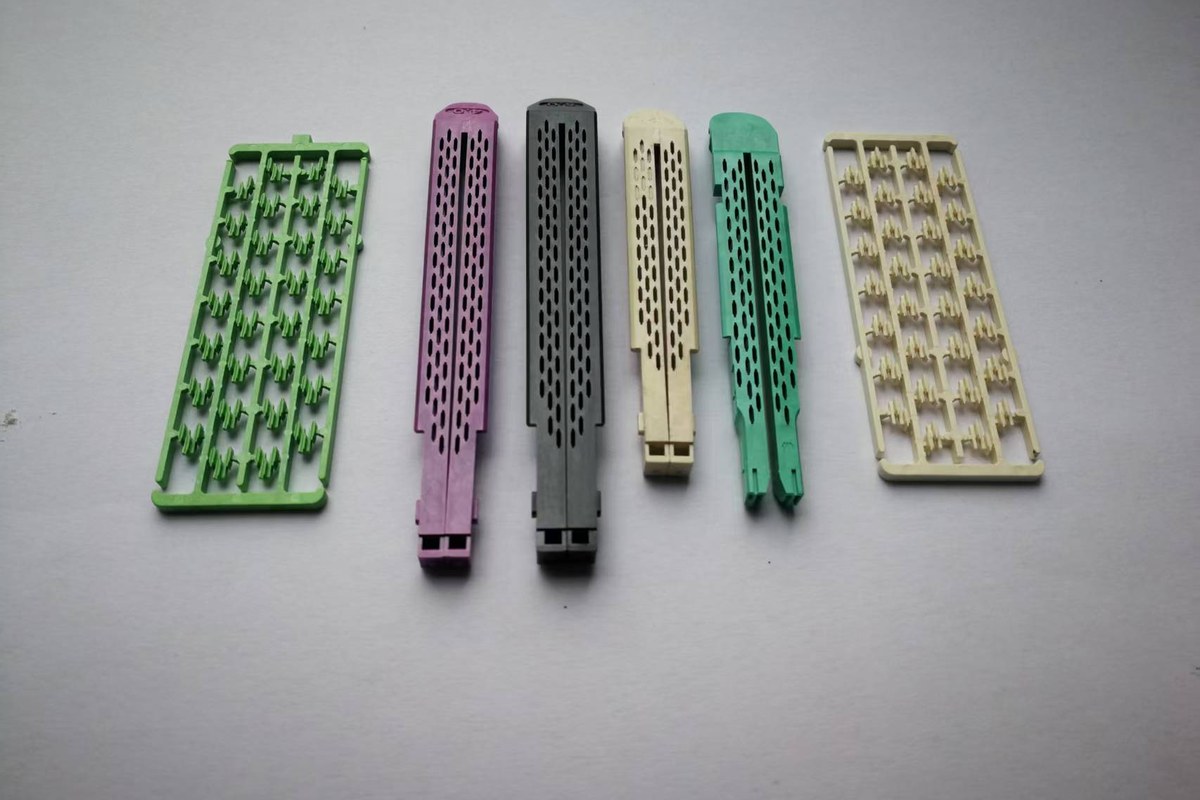

Long Multi-feature Housings
Long-form products with dense repeated openings and internal features.
Compact Molded Housings
Small plastic components with functional locking and assembly features.

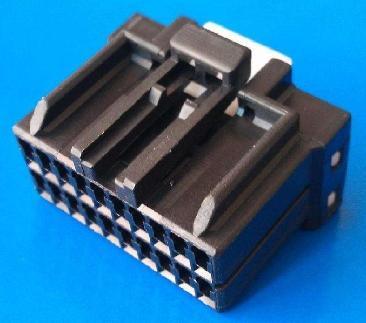

Multi-pin Plastic Housing
Connector housing requiring consistent cavities and terminal positioning.

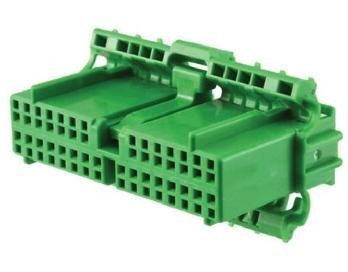

Automotive Connector Housing
Complex plastic housing with dense pin layout and assembly interfaces.
Automotive Molded Component
Colored connector product with locking, sealing, and mating features.
Precision Plastic Component
Compact molded part with controlled wall thickness and dimensional fit.
Functional Molded Part
Structural plastic component with mounting and positioning features.

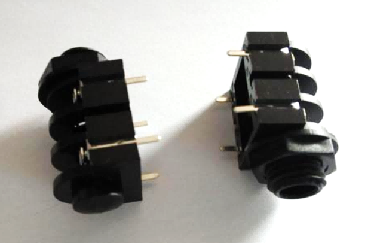

Overmolded Components
Plastic and metal integrated products for cable and connector applications.

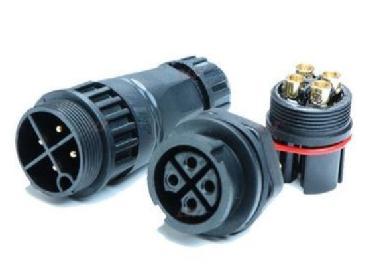

Circular Connector Products
Multi-position plastic bodies with sealing and mating interfaces.

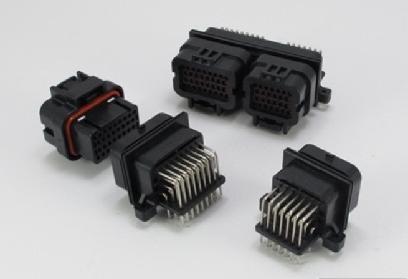

Automotive Connector Family
Compact molded products for automotive electronic and harness systems.
Insert-molded Components
Plastic parts coordinated with metal inserts and assembly requirements.
Pin Header Housings
Long multi-position housings requiring controlled pitch and alignment.
Board Connector Housing
Compact molded body with terminal and mounting features.
High-density Connector Housing
Multi-row product with detailed cavity geometry and repeatable molding.
Housing & Terminal Assembly
Molded connector body designed around terminal insertion and retention.
Trial & Verification Control
Checks applied before tooling release
Mold trial and parameter reviewInsert and overmolding tooling reviewAppearance inspectionCritical dimension checksAssembly fit verificationTooling adjustment feedback
Need tooling trial or insert molding support?
Send product drawings, resin, insert details, expected cavities, sample review needs, and inspection requirements.
